FX5U-80MR/ES

R 24 704.00

Important Notice:
- Stock is subject to availability and may vary due to dynamic stock levels.
- Mitsubishi Electric Factory Automation Hardware Products are for collection only.
  - You can arrange for your courier to collect the item or opt for self-collection.
- If a product is out of stock, it will be placed on backorder.
Shipping: NOT included

Availability: In stock

Description

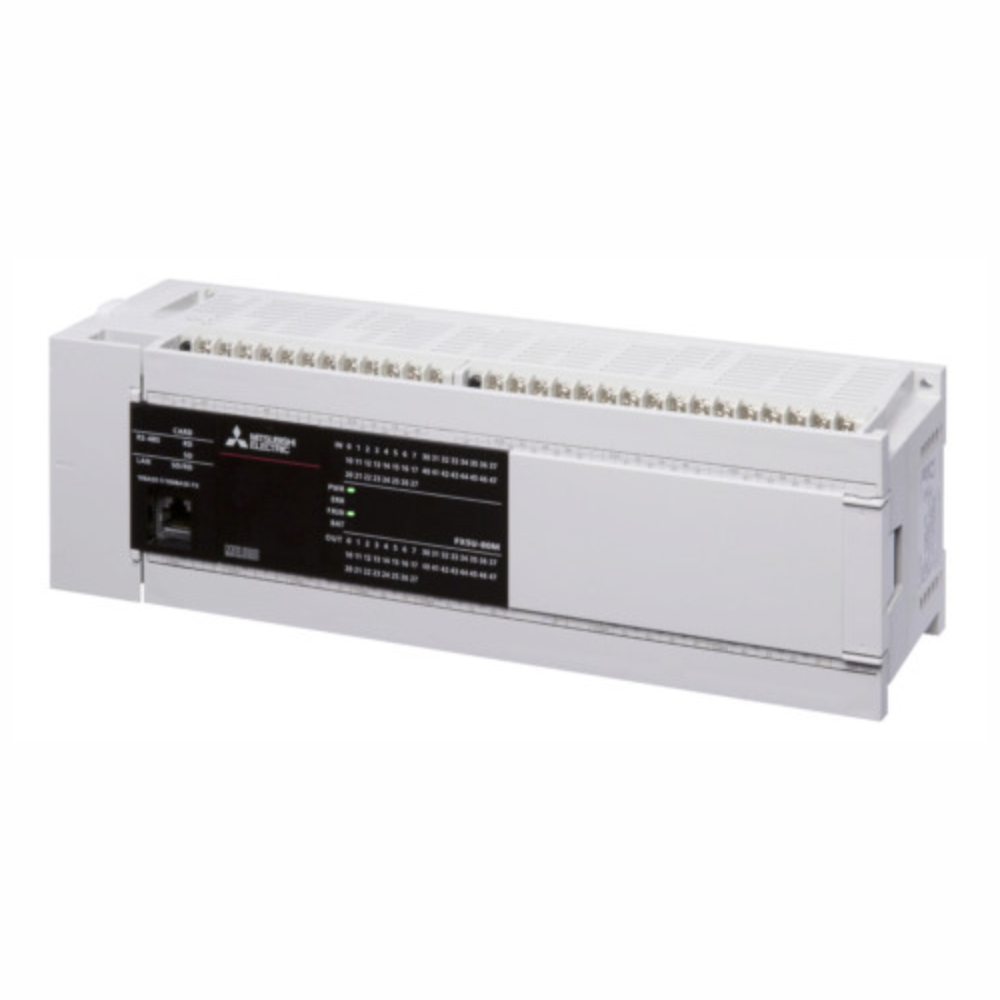

FX5U-80MR/ES – Mitsubishi Electric PLC (80 I/O, Ethernet, RS-485, AC Power)

Description

The Mitsubishi Electric FX5U-80MR/ES is a high-performance, compact PLC designed for advanced automation tasks. With 40 digital inputs and 40 relay outputs, it offers robust control capabilities in a single, integrated unit. Built on the powerful iQ-F platform, it features built-in Ethernet and RS-485 communication, making it ideal for modern industrial networks.

Key Features

40 digital inputs (24V DC sink/source)
40 relay outputs (AC/DC switching up to 2A per point)
Built-in Ethernet port for high-speed networking
RS-485 serial communication for legacy or third-party integration
Integrated AC power supply (100–240V AC)
Expandable via FX5U I/O and communication modules
Programmed using GX Works3 software
High-speed processing for advanced control
DIN-rail mountable compact form factor

Product Specifications

Specification	Details
Model Number	FX5U-80MR/ES
Digital Inputs	40 (24V DC)
Relay Outputs	40 (250V AC/30V DC, 2A per point)
Power Supply	100–240V AC (85–264V range)
Communication	Ethernet, RS-485
Program Memory	64k steps
Mounting	DIN rail
Programming Software	GX Works3
Dimensions (W x H x D)	Approx. 220 x 90 x 83 mm
Weight	Approx. 1 kg

Applications

Industrial automation and control systems
Food and beverage processing
Packaging machines
Pump and motor control
OEM equipment manufacturing
Water treatment plants
Material handling systems

Additional information

Brand	Mitsubishi Electric
Model Number	FX5U-80MR/ES
Series	MELSEC iQ-F
Product Type	PLC CPU Module
Input Type	Digital (Sink/Source)
Output Type	Relay
Number of Inputs	40
Number of Outputs	40
Communication Ports	Ethernet, RS-485
Power Supply Type	Integrated AC (100–240V)
Mounting Style	DIN Rail
Programming Software	GX Works3
Memory Capacity	64k steps
Dimensions	220 x 90 x 83 mm
Weight	Approx. 1 kg
Certifications	CE, UL/cUL, UKCA, Marine Approvals
